Being part of KELONIK GROUP, KCS division has a wide professional expertise in cinema sound systems, backed by fifteen years of experience and a large customer base worldwide. We are globally represented by our international KCS Distributor Network in the five continents.

Through continuous research and new product development for years, KCS has fulfilled customer demands in terms of optimised features, high performances, variety of models for any market needs, and efficient service.

With the advent of the new 3D digital projection formats, audio systems in movie theatres need to evolve so that the audience can be immersed in the sound field and enjoy a true 3D sound experience.

KCS is highly implicated in the development of such sound systems aimed for Dolby Atmos, Auro 11.1 or similar.

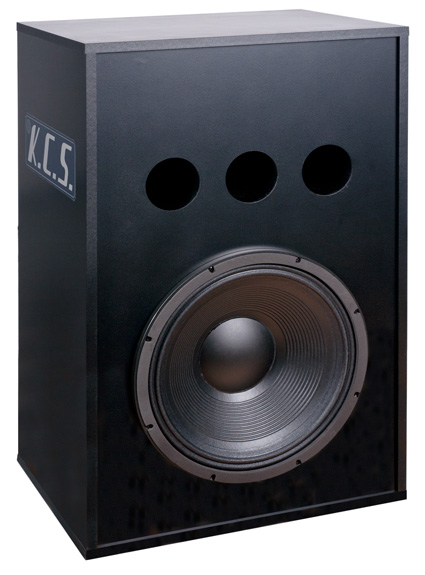

C118-H

Screen channel cinema sound system especially designed for subwoofers.

C-118-H has one K.C.S. S-1846 H 18” Ø woofer, with a high efficiency 4” Ø voice coil which provides an excellent low-frequency response. This model features a high power handling capacity and reduced power compression. Using the direct radiation technology, this speaker provides a deep and highly linear bass sound.

Components:

  • Cabinet C-118-A.
  • Loudspeaker 18" S-1846.

Specifications :

  • Frequency Range: (-10 dB) 30hz - 500Hz.
  • Nominal Impedance 8 Ωhms.
  • Power Capacity Continuous Pink Noise: 700W.
  • Continuous Program: 1400 W.
  • Sensitivity 1W/1m: 98 dB S.P.L.
  • Crossover Frequency: 80-100 Hz recommended.
  • Dimensions (H x W x D): 98 x 63 x 47 cm.
  • Net Weight: 44kg.

Download Datasheet
