Sony

Sony offers exhibitors the best of both worlds: stunning 4K imagery and advanced 3D.Their 3D dual lens system presents two images to both eyes at once without triple-flash for more natural viewing. Sound Associates has installed over 800 Sony 4K projectors – with amazing pictures on the screen. The Sony system includes a sophisticated but user-friendly TMS with touch screen interface and a support structure that is second to none.

Sound Associates acts as a partner for all Sony cinema products – and Sound Associates has installed the first of the new Sony Entertainment Access Systems which is a revolutionary way of delivering subtitled performances to audience members with hearing difficulties.

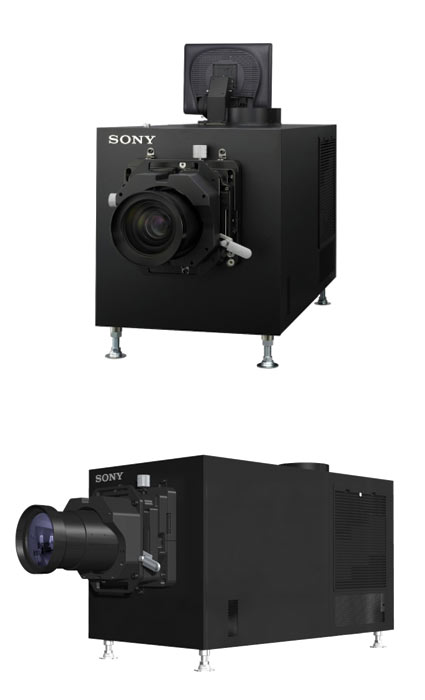

SRX-R510

True 4K images with premium- quality lens and integrated media block
The SRX-R510 with 4096 x 2160 pixel resolution that’s four times the resolution of 2K and HD. The top-quality F2.5 large aperture lens employs ELD (Extra Low Dispersion) glass to create finely-detailed 4K images. Unlike other projection systems that combine a 2K lens and 4K media block, the SRX-R510 combines a set of 4K SXRD panels plus 4K lens and media block for true 4K images at the highest resolution.

Give audiences the immersive thrill of Sony 4K for small cinema screens
Building on the success of the acclaimed SRX-R515, the SRX-R510 brings a true Sony 4K digital cinematic experience to cost-conscious smaller theatres. Teaming superb 4K picture quality with affordable running costs, the SRX-R510 shares the same compact body, integrated media block and SXRD optical engine as the SRX-R515.

Also derived from the SRX-R515, the resilient 4-lamp High Pressure Mercury (HPM) array delivers a 9,000 lumen light output from four individually-replaceable projection lamps.There’s a choice of high quality 2D projection lenses to suit different-sized auditoria. And it’s simple upgrading to smooth, immersive 3D with the addition of an easy-to- fit 3D lens/filter option.The easy-to-use projector features an intuitive 15-inch touch panel user interface, and can also be controlled remotely via a networked PC and web browser.

High contrast for lifelike images
The SXRD optical engine of the SRX-R510 delivers an extremely
high contrast ratio more than 4,000:1, assuring lifelike images with sparkling highlights and deep, dark blacks.

Cost-effective HPM lamp array offers safe, easy lamp replacement
An array of four High Pressure Mercury (HPM) lamps offers high brightness, resilience and durability. Projector operation is maintained even if a lamp fails during a performance. Lamp replacement is safe and easy, while contributing to reduced overall running costs.

High brightness projection on screens up to 10m wide
The SRX-R510 offers a generous brightness of 9,000 lumens (with 450W lamps), optimised for small cinema screens up to 10m wide (with 450W lamps, for 2D projection).

High speed content ingest/transfer and high capacity storage
The SRX-R510 features higher network transfer speeds via USB 3.0, allowing theatre managers to create flexible show scheduling. Storage capacity from 4TB up to a possible 8TB capacity.

Larger size GUI and remote tablet control of screen management system software
The SRX-R510 has a large 15-inch Graphical User Interface (GUI) that is consistent with the Sony Theatre Management System. It allows the operator to set up the projector, manage content and create a complete show-schedule. In addition, the system supports both iPad and Android tablet remote control to make theatre operation more effective.

Flexible alternative content input configuration
The SRX-R510 is fitted with 2 HDMI as standard

Screen size that this projector will fill (in 2D) is 10mtrs.
